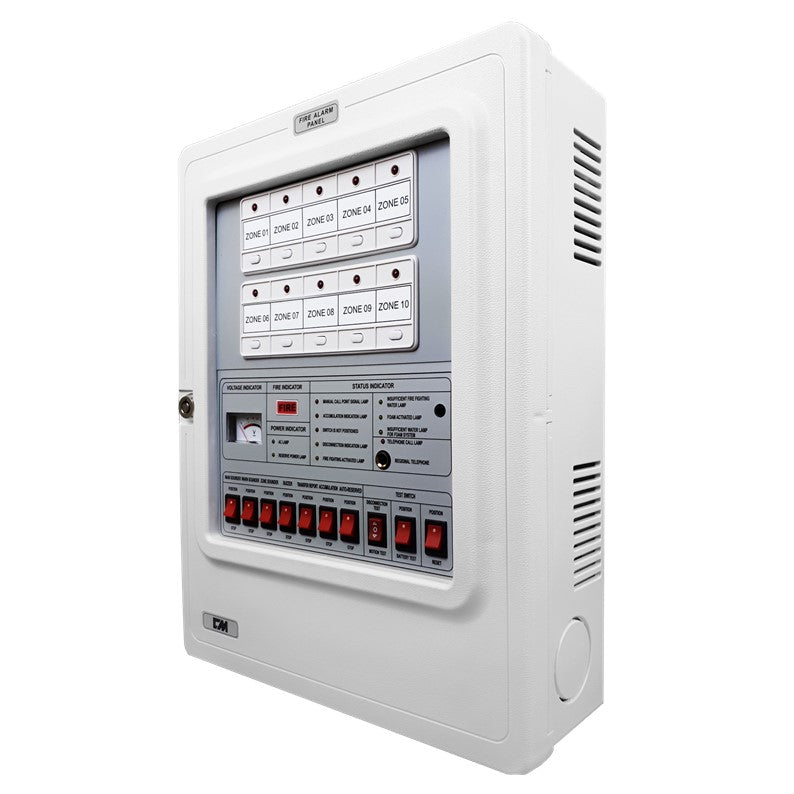

CM-EP1 Fire Alarm Control Panel
CM-EP1 Fire Alarm Control Panel
CM-EP1 Fire Alarm Control Panel
CM-EP1 Fire Alarm Control Panel
CM-EP1 Fire Alarm Control Panel
CM-EP1 Fire Alarm Control Panel
防災專家

CM-EP1 Fire Alarm Control Panel

Sale price$0
Sold out

Features
● 2 stages accumulation function to prevent from false alarm
● Standby battery protection
● Surge Protection
● Abnormal voltage inspection
● Housed in flame retardant ABS enclosure and modularity design

Specifications

MODEL NO. CM-EP1
POWER SUPPLY 230V AC 50/60 Hz
STANDBY BATTERY 24V DC /Lead-Acid (Non-Spillable) Battery
E.O.L RESISTOR 10 KΩ
EXTERNAL CIRCUIT RESISTANCE To-and-fro below 50 Ω
NO. OF BELLS 1.2 times of panel circuits
MAIN AUDIO Single-tone buzzer, above 85 dB
CURRENT VOLTAGE  24V DC operation voltage, below 5V 32mA
CHARGING CURRENT 26V DC, under 450mA, Trickle Charge
DETECTORS No limit of R.O.R or Fixed Temp. Heat Detector can be installed; Each circuit can connect to a maximum of 20 smoke detectors (standby current for detector: 24V DC 25 μA below).
NO. OF INDICATORS 1.2 times of panels circuits (LED indicator)
CASE MATERIAL ABS resin with non-flammability
REPORT CONTACT No voltage N.O. contact
Capacity 250V AC 7A × 2 sets
