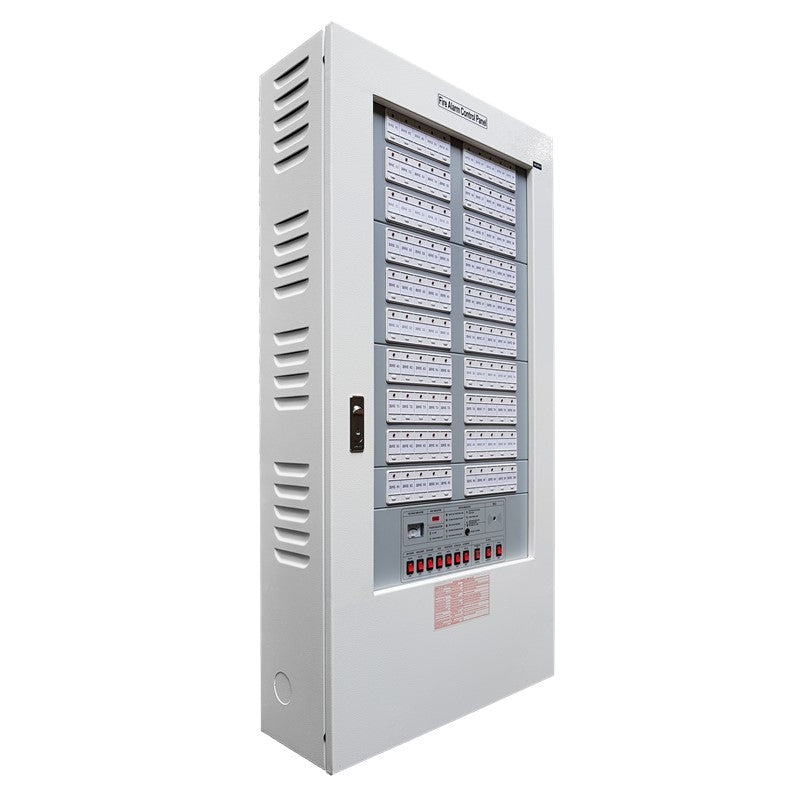

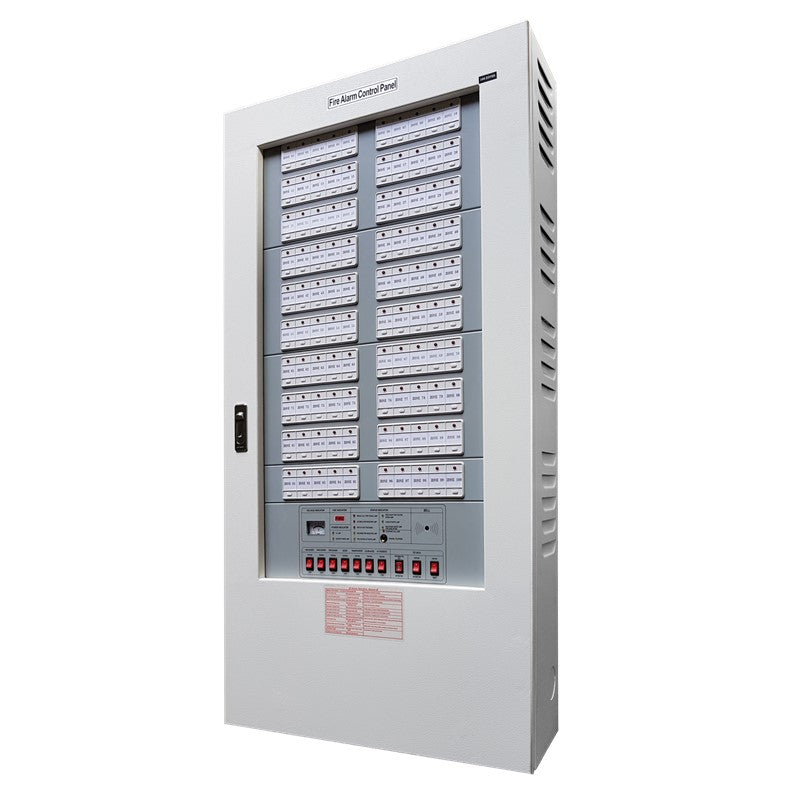

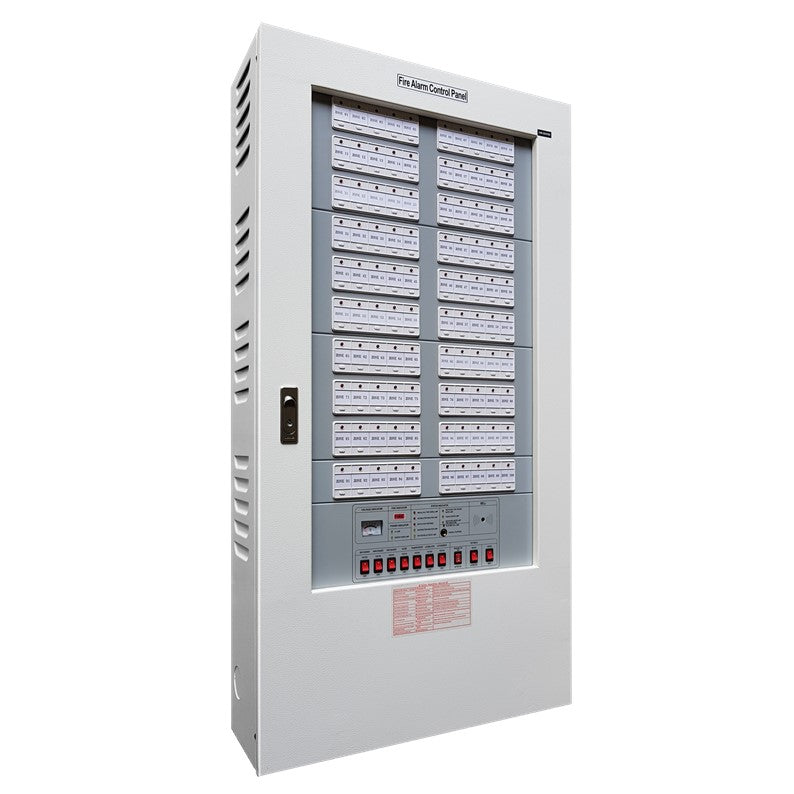

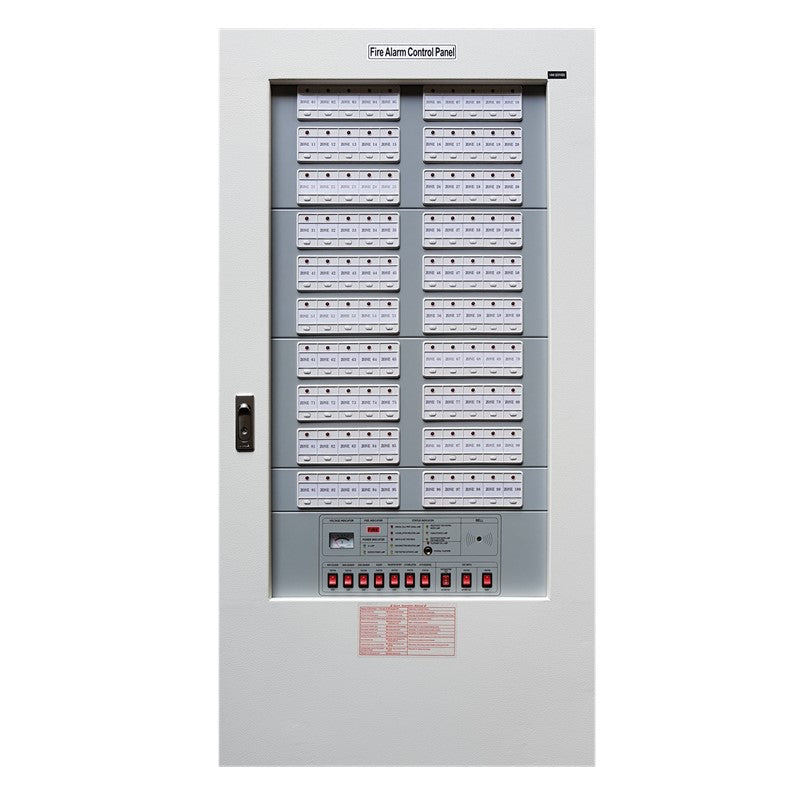

CM-P1 Ground Mounting Type

Features
Ground Mounting Type Fire Alarm Control Panel
● Zone: 100 zones
● 2 stages accumulation function to prevent false alarm from Detectors
● With no voltage output contacts and voltage contacts
● The unit also can combine with CM broadcast host and emergency telephone into 3-in-1 system for multipurpose

Specifications

MODEL NO. CM-P1
POWER SUPPLY 230V AC 50/60 Hz
STANDBY BATTERY 24V DC /Lead-Acid (Non-Spillable) Battery
E.O.L RESISTOR 10 KΩ
EXTERNAL CIRCUIT RESISTANCE To-and -fro below 50 Ω
NO. OF BELLS 1.2 times of panel circuits
MAIN AUDIO Single-tone buzzer, above 85 dB
CURRENT VOLTAGE  24V DC operation voltage, below 5V 32mA
CHARGING CURRENT 26V DC, under 450mA, Trickle Charge
DETECTORS No limit of R.O.R or Fixed Temp. Heat Detector can be installed; Each circuit can connect to a maximum of 20 smoke detectors (standby current for detector: 24V DC 25 μA below).
NO. OF INDICATORS 1.2 times of panels circuits (LED indicator)
CASE MATERIAL 1.2mm~2.0mm Steel plate with powder coating
REPORT CONTACT No voltage N.O. contact
Capacity 250V AC 7A × 2 sets
