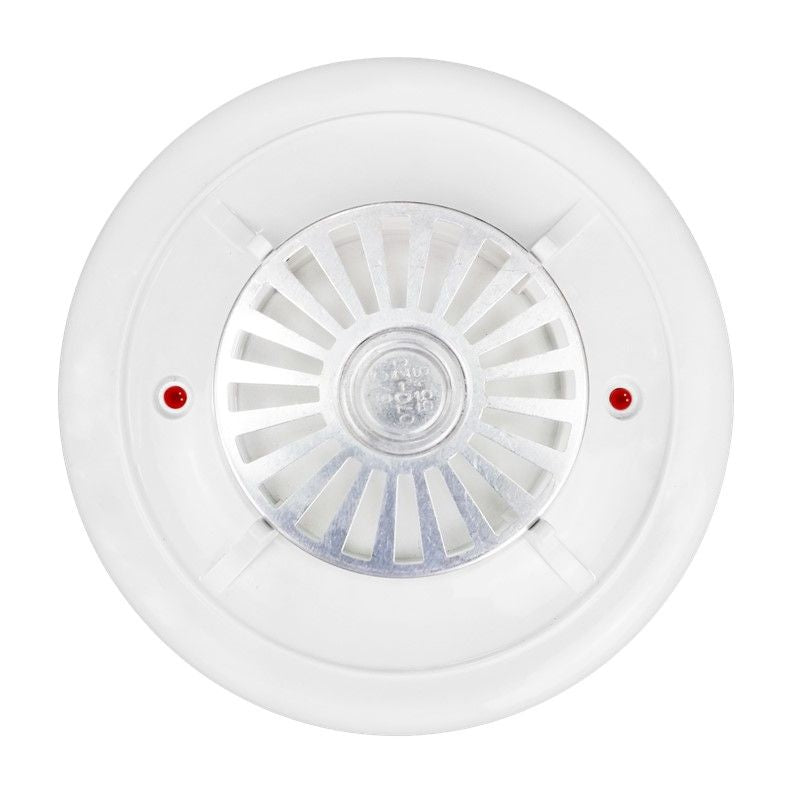

CM-WK24LR Fixed Temperature Heat Detector


Features
● Dual LEDs for 360-degree visibility
● Stabilized performance, long term durability and least-malfunction are ensured by employing a UL approved sensor
● The sensitive part is enclosed to prevent from being moistened and contaminated
● Self-restoring function ensures the element repeatedly use

Specifications

MODEL NO. CM-WK24L CM-WK24LR
TYPE  2-wire 3-wire
VOLTAGE RANGE  12V ~ 30V DC
ALARM CURRENT  24V DC 30mA
POLARIZATION  Non-polarized Polarized
WEIGHT  109g
SENSITIVITY SETTING Comply to CNS
AMBIENT TEMP.  -10℃ ~ +55℃
AMBIENT HUMIDITY  0 ~ 95%
MATERIAL  Burning-proof plastics
DIMENSIONS  102 (Dia.) × 43 (H) mm
COLOR White
REMARK Apply to base model No. CM-BSN3
