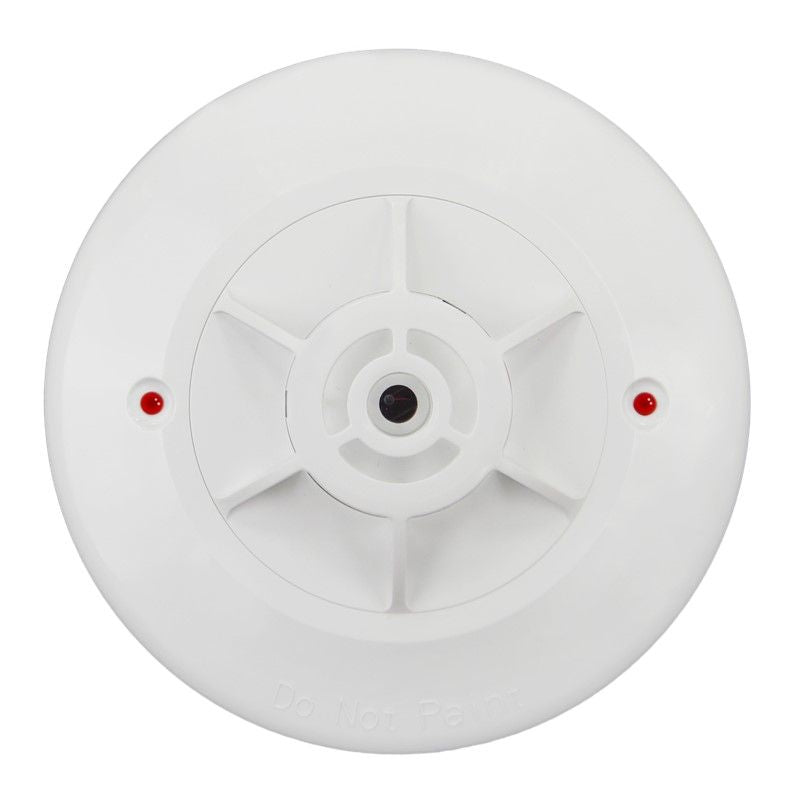

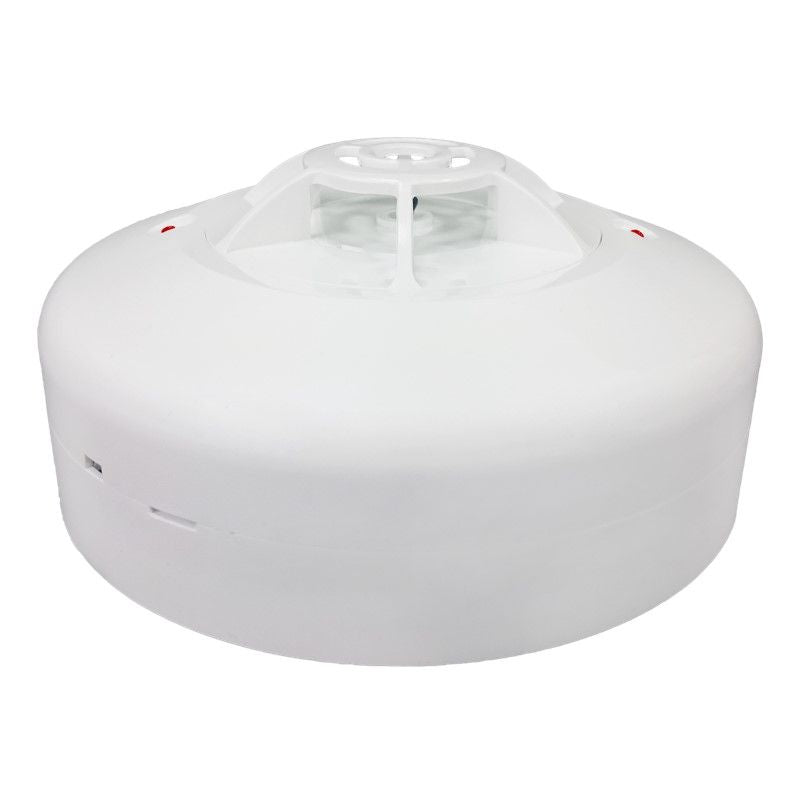

CM-WK51 Fixed Temperature Heat Detector


Features
● Unique electric components of detecting high accuracy of fire alarm
● Monitioring signal lights (green LED) are easily to identify if the detector is working normally
● The base sharing the same mechanism makes it easy to install or replace
● 360-degree Dual LED makes no blind spot and high visibility
● EMC test passed, made of durable and Burning-proof plastic

Specifications

MODEL NO. CM-WK51
TYPE  2-wire
VOLTAGE RANGE  12V ~ 30V DC
ALARM CURRENT  24V DC 40mA
THERMAL SETTING 58℃
STANDBY CURRENT  24V DC / 20~90μA
POLARIZATION  Non-polarized
WEIGHT  115g
SENSITIVITY SETTING Comply to CNS
AMBIENT TEMP.  0℃ ~ +55℃
AMBIENT HUMIDITY  0 ~ 95%
MATERIAL  Burning-proof plastics
DIMENSIONS  102 (Dia.) × 45 (H) mm
COLOR White
