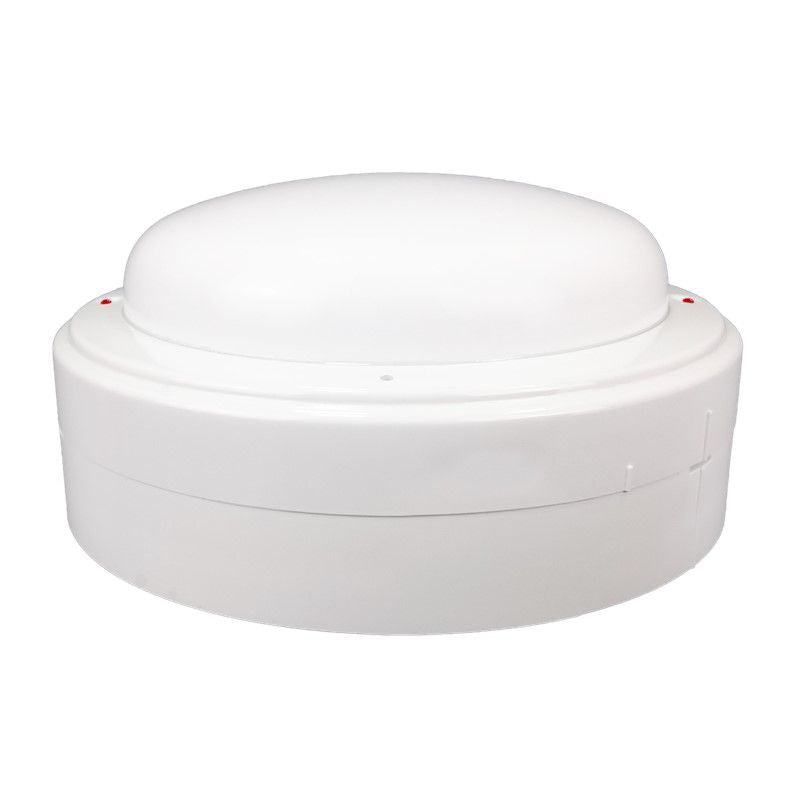

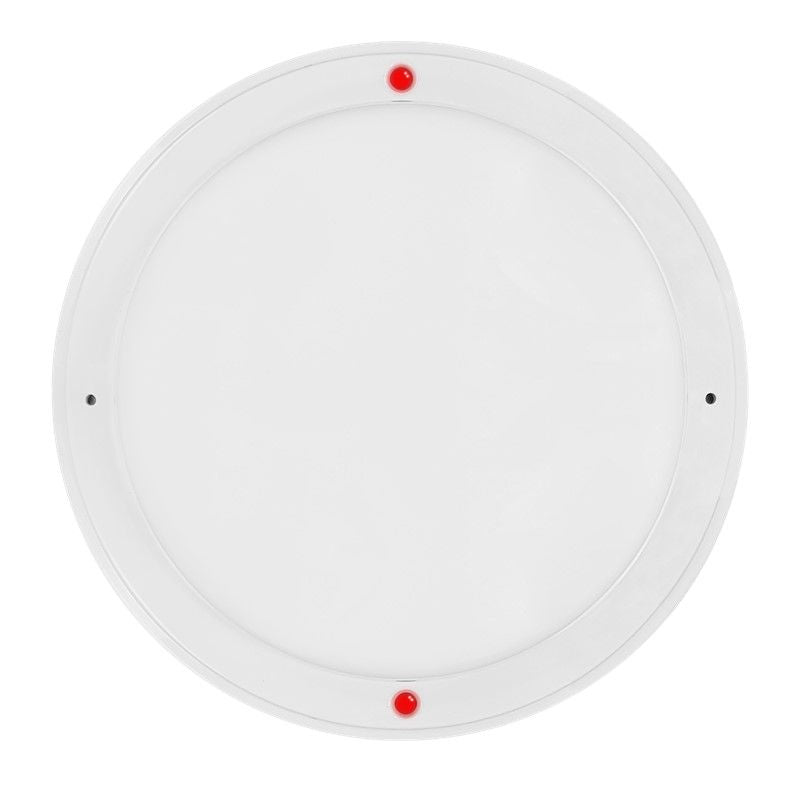

CM-WS14LR Rate of Rise Heat Detector


Features
● Dual LEDs for 360-degree visibility
● Mechanical operating principles ensure the long-term durability and the least malfunction
● Self-restoring function ensures the elements repeatedly use
● Electrical contacts with Sliver-palladium alloy to conduct electricity excellently
● The exhaust valve of R.O.R Heat Detector part uses optical fiber glass capillary tube that's heat-resistant and moisture proof to avoid false alarms

Specifications

MODEL NO. CM-WS14L CM-WS14LR
TYPE  2-wire 3-wire
VOLTAGE RANGE  12V ~ 30V DC
ALARM CURRENT  24V DC 30mA
POLARIZATION  Non-polarized Polarized
WEIGHT  131g
SENSITIVITY SETTING Comply to CNS
AMBIENT TEMP.  -10℃ ~ +55℃
AMBIENT HUMIDITY  0 ~ 95%
MATERIAL  Burning-Proof Plastics
DIMENSIONS  102 (Dia.) × 47 (H) mm
COLOR White
REMARK Apply to base model No. CM-BSN3
