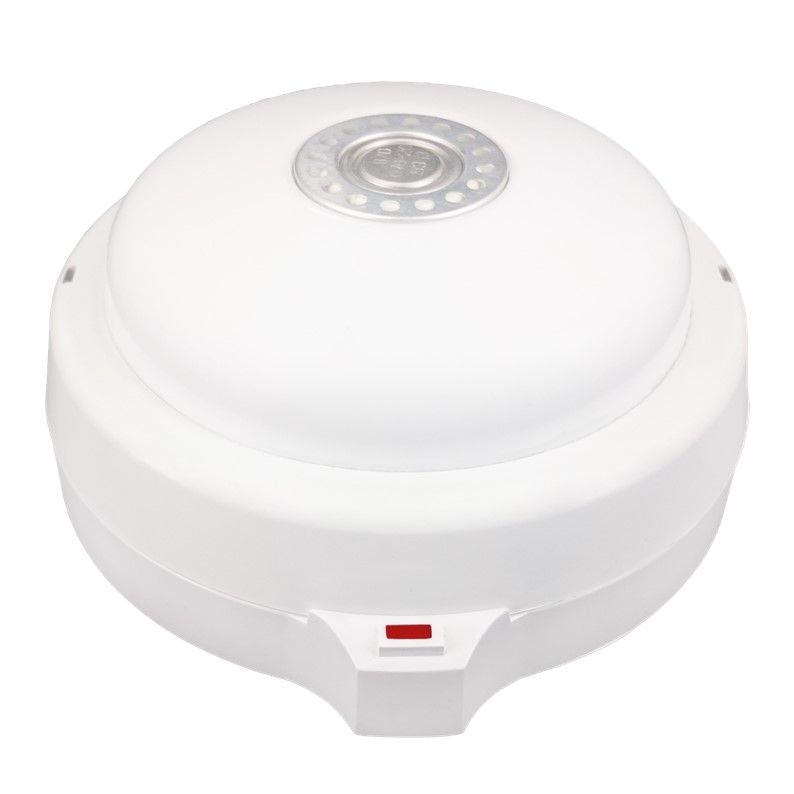

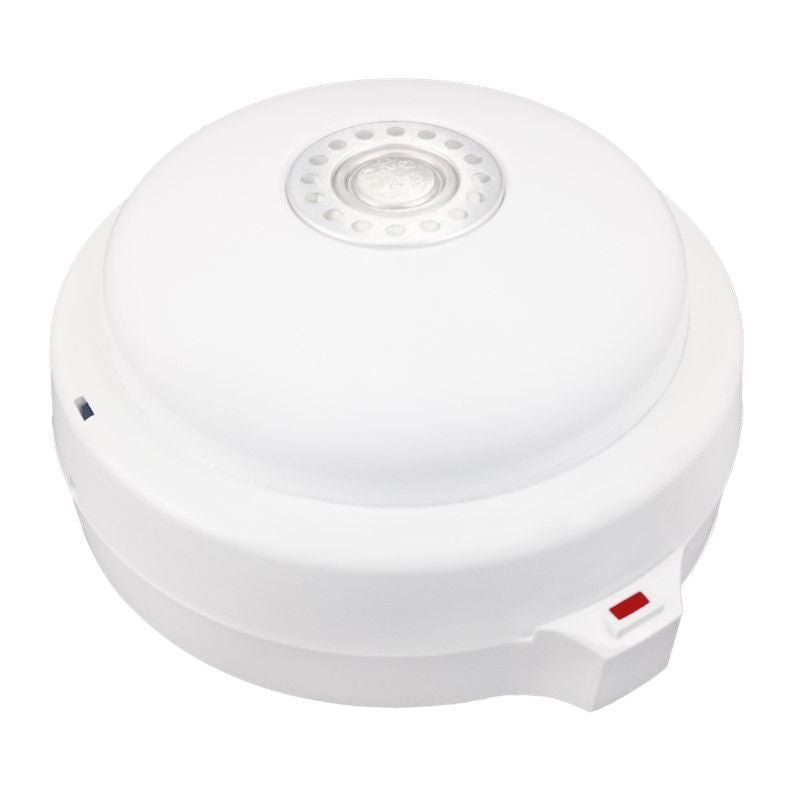

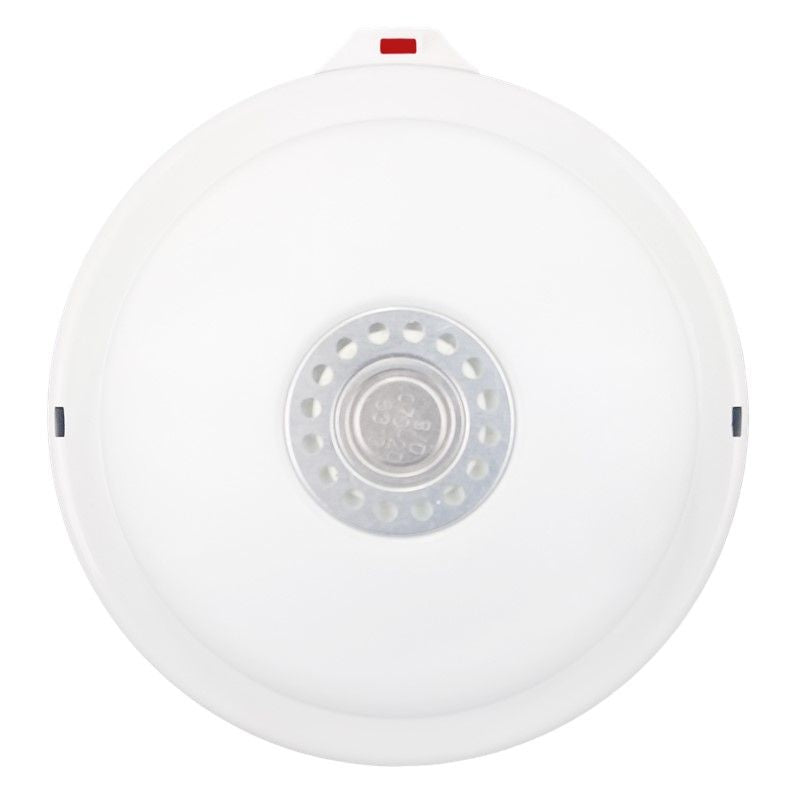

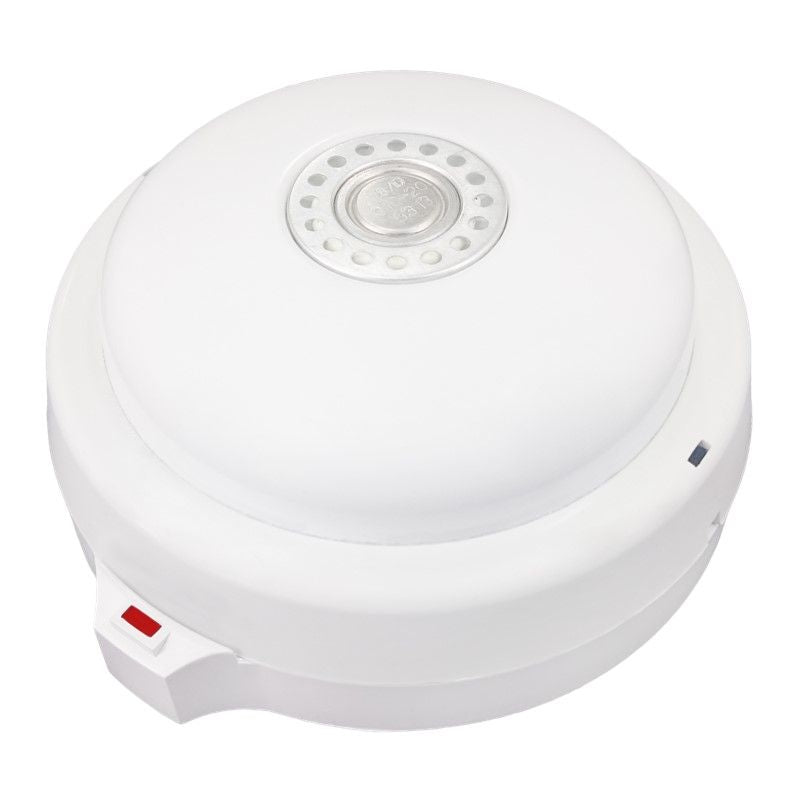

CM-WSK701 Multipurpose heat detector


Features
● The sensitive of fixed temperature heat detector part is stabilized performance, long-term durability and least malfunction are ensured by employing a bimetal echanism (certificate by UL)
● Mechanical operating principle ensures the long-term durability and the least malfunction
● The exhaust valve of rate of rise heat detector part uses optical fiber glass capillary tubing that is heat-resistant and moisture-proof to avoid false alarms

Specifications

MODEL NO. CM-WSK701
TYPE  2-wire 3-wire 4-wire
VOLTAGE RANGE  12V ~ 30V DC
CONTACT RATING  N/A 1A @ 30V DC
ALARM CURRENT  24V DC 30mA
POLARIZATION  Non-polarized Polarized Non-polarized
WEIGHT  132g
SENSITIVITY SETTING Comply to CNS
AMBIENT TEMP.  -10℃ ~ +55℃
AMBIENT HUMIDITY  0 ~ 95%
MATERIAL  Burning-proof plastics
DIMENSIONS  102 (Dia.) × 45 (H) mm
COLOR White
