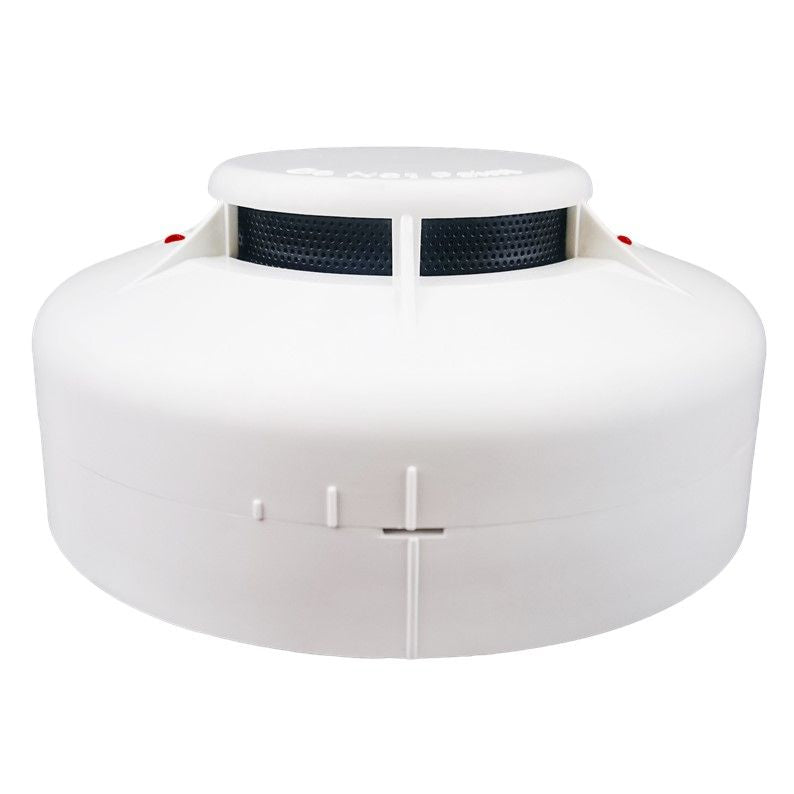

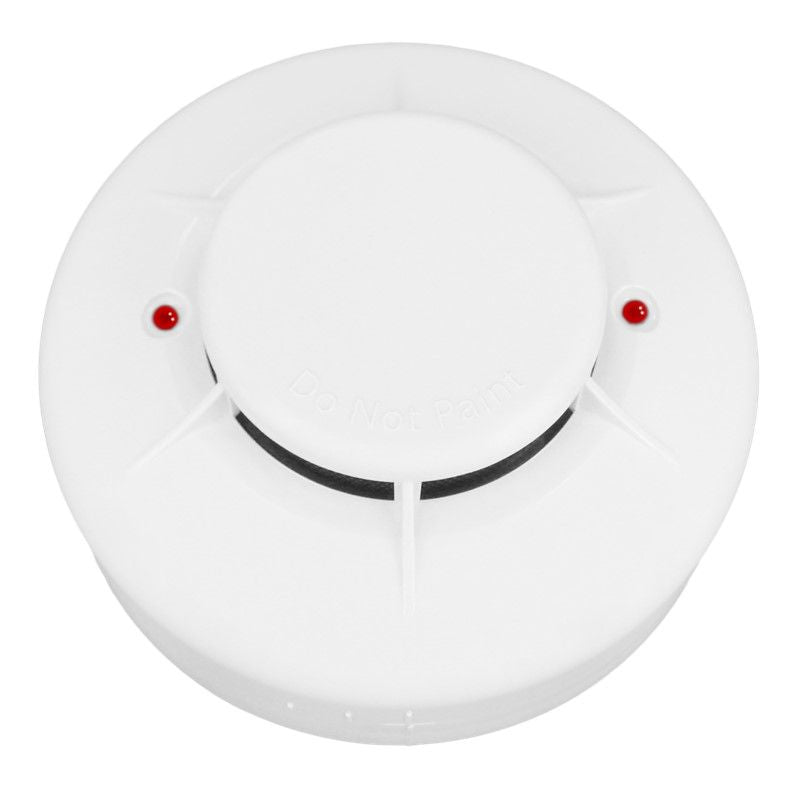

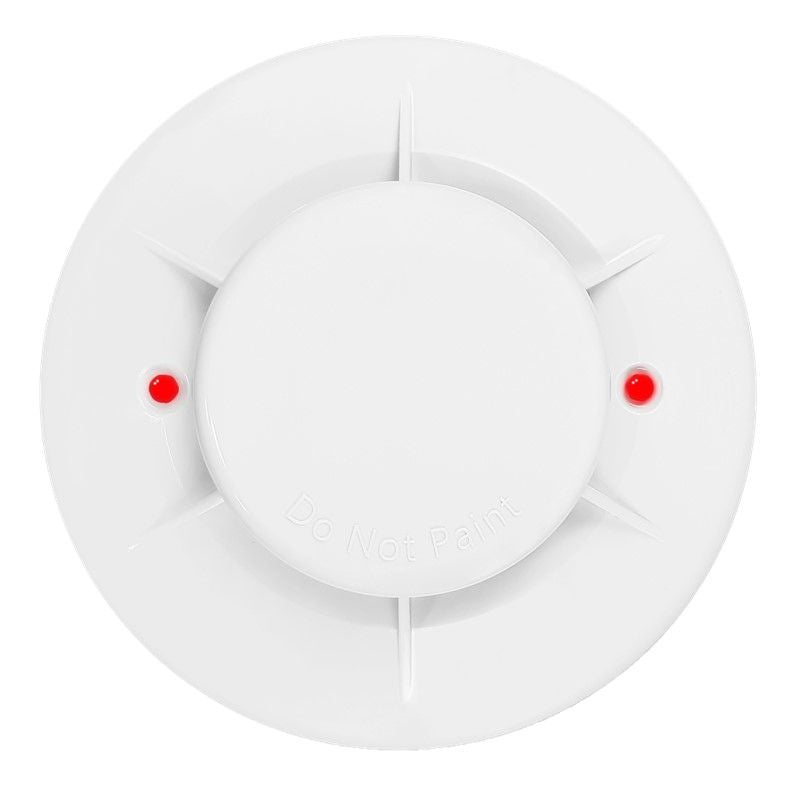

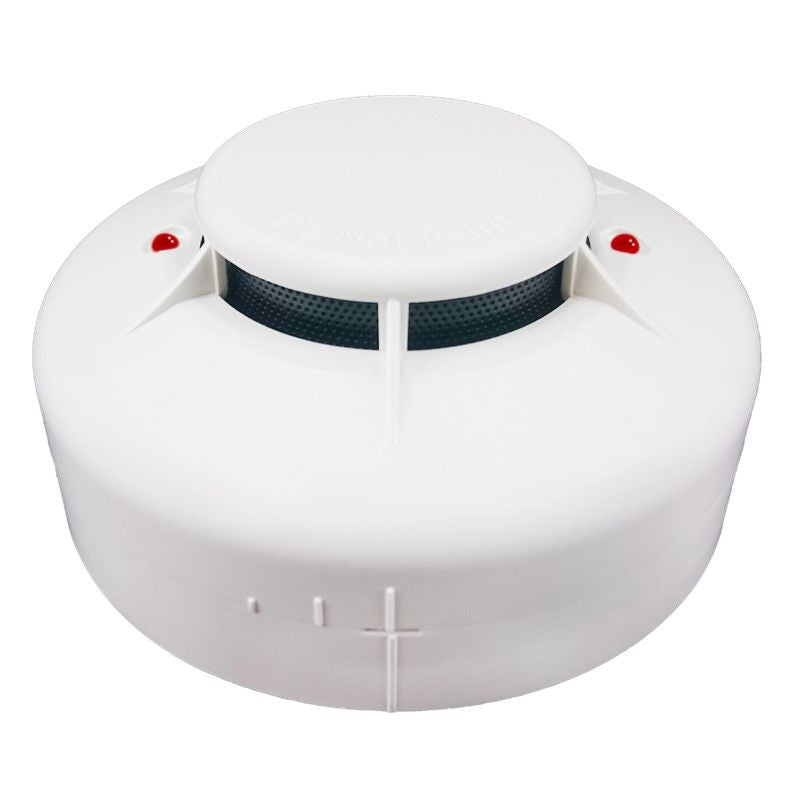

CM-WT33LR Photoelectric Type Smoke Detector
Features
● Dual LEDs 360-degree visibility. Bi-color LEDs, stand-by status: Green; Alarm status: Red
● With the photoelectric sensing principle, this kind of detector is activated more quickly, accurately and reliably, and there are no false alarm due to chemicals, exhaust gas, wind and exterior light
● Detector has passed EMC test, which greatly eliminates false alarms caused by interference from nearb sources
● Pretty and jointless outward
Specifications
| MODEL NO. | CM-WT33LR | CM-WT33LT | |
| TYPE | 2-wire | 3-wire | 4-wire |
| VOLTAGE RANGE | 12V ～ 30V DC | ||
| CONTACT RATING | N/A | 1A @ 30V DC | |
| ALARM CURRENT | 24V DC 30mA | ||
| STANDBY CURRENT | 24V DC / 25 μA Below | ||
| POLARIZATION | Non-polarized | Polarized | Non-polarized |
| WEIGHT | 131g | 137g | |
| SENSITIVITY SETTING | Comply to CNS | ||
| AMBIENT TEMP. | -10℃ ～ +55℃ | ||
| AMBIENT HUMIDITY | 0 ～ 95% | ||
| MATERIAL | Burning-Proof Plastics | ||
| DIMENSIONS | 102 (Dia.) × 46 (H) mm | ||
| COLOR | White | ||
| REMARK | Apply to base model No. CM-BSN3 & CM-BSN3T | ||
