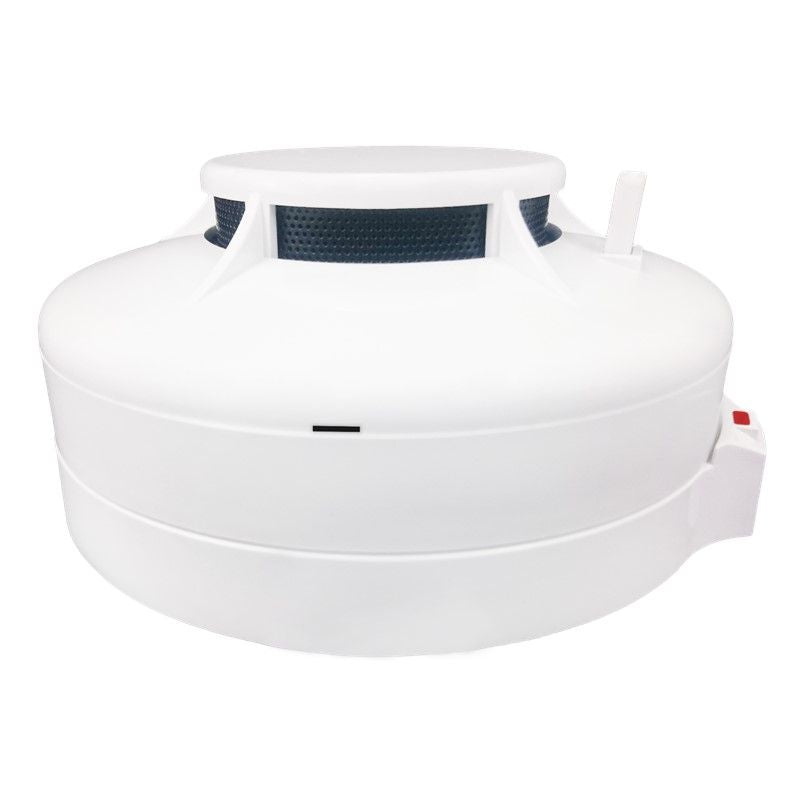

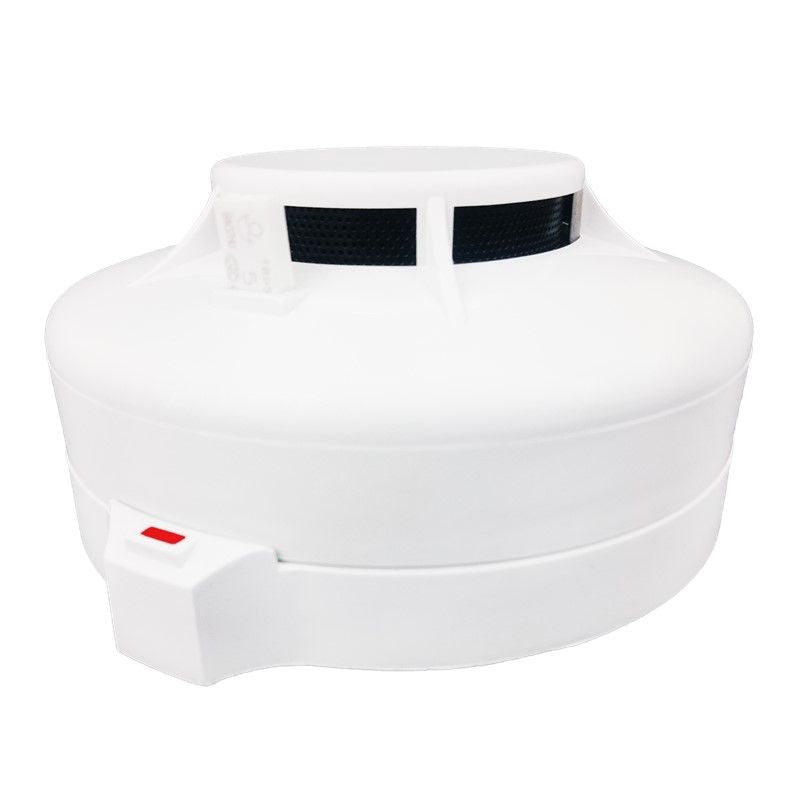

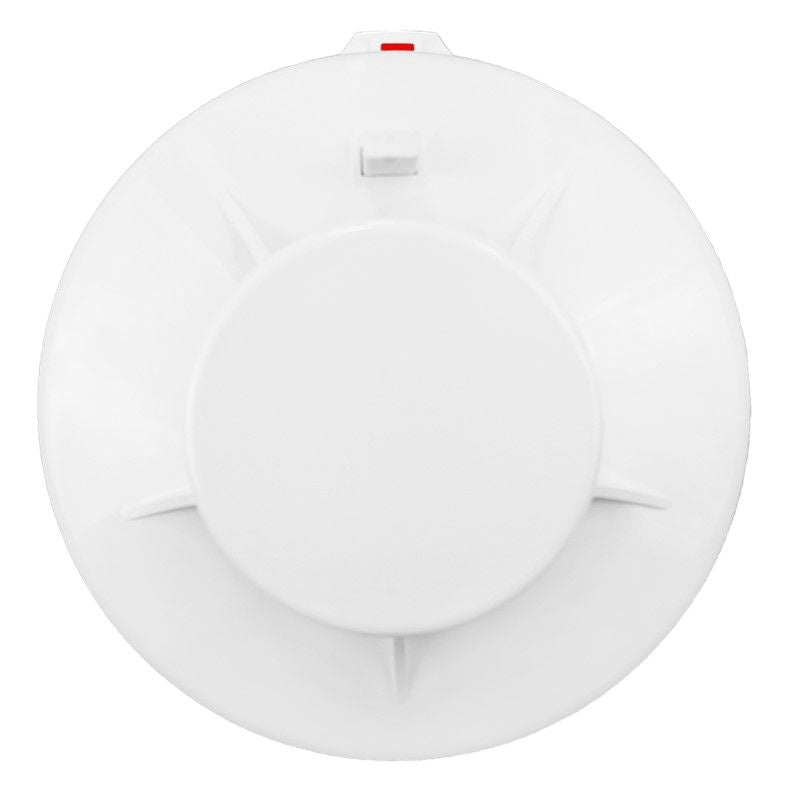

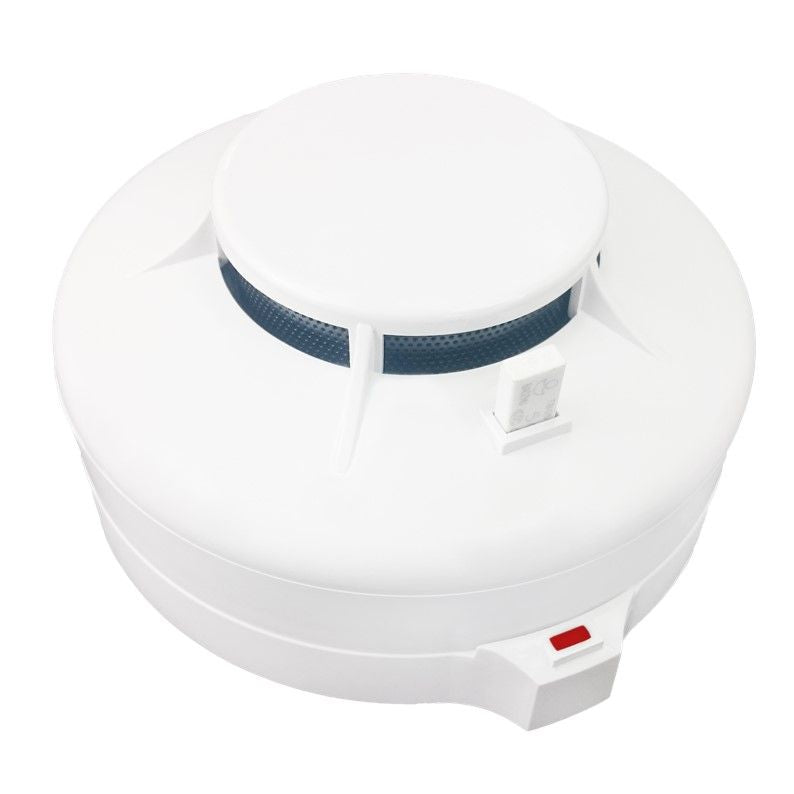

CM-WTK55 Combination Smoke and Heat Detector


Features
● Multi-purpose Design: when there is smoke or heat during pre-fire period, field situation will vary due to different environments. This combination design is to ensure that the pre-fire confirmation will not be affected by varying environments
● This detector has passed strict quality control and repetitive testing, hence its quality is stable and highly reliable

Specifications

MODEL NO. CM-WTK55
TYPE  2-wire 3-wire 4-wire
VOLTAGE RANGE  12V ~ 30V DC
CONTACT RATING  N/A 1A @ 30V DC
ALARM CURRENT  24V DC 30mA
STANDBY CURRENT 24V DC / 25 μA Below
POLARIZATION  Non-polarized Polarized Non-polarized
WEIGHT  140g
SENSITIVITY SETTING Comply to CNS
AMBIENT TEMP.  -10℃ ~ +55℃
AMBIENT HUMIDITY  0 ~ 95%
MATERIAL  Burning-Proof Plastics
DIMENSIONS  102 (Dia.) × 48 (H) mm
COLOR White
