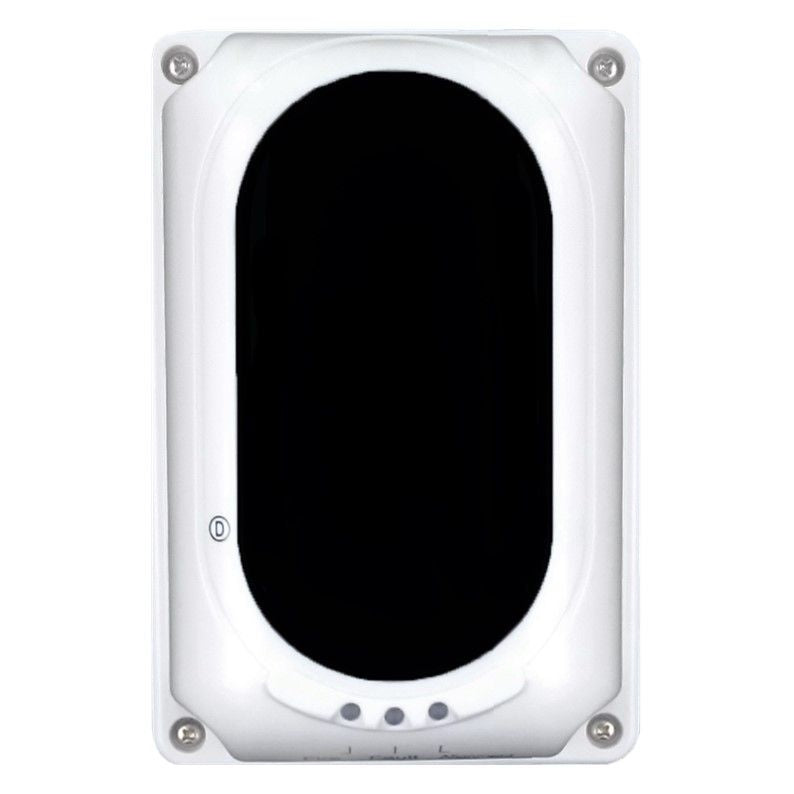

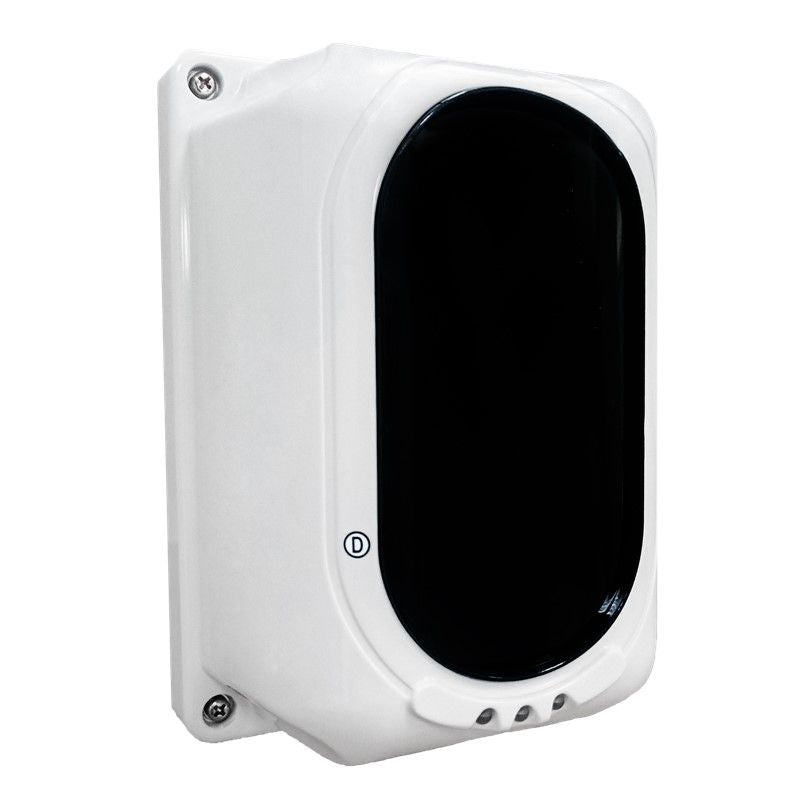

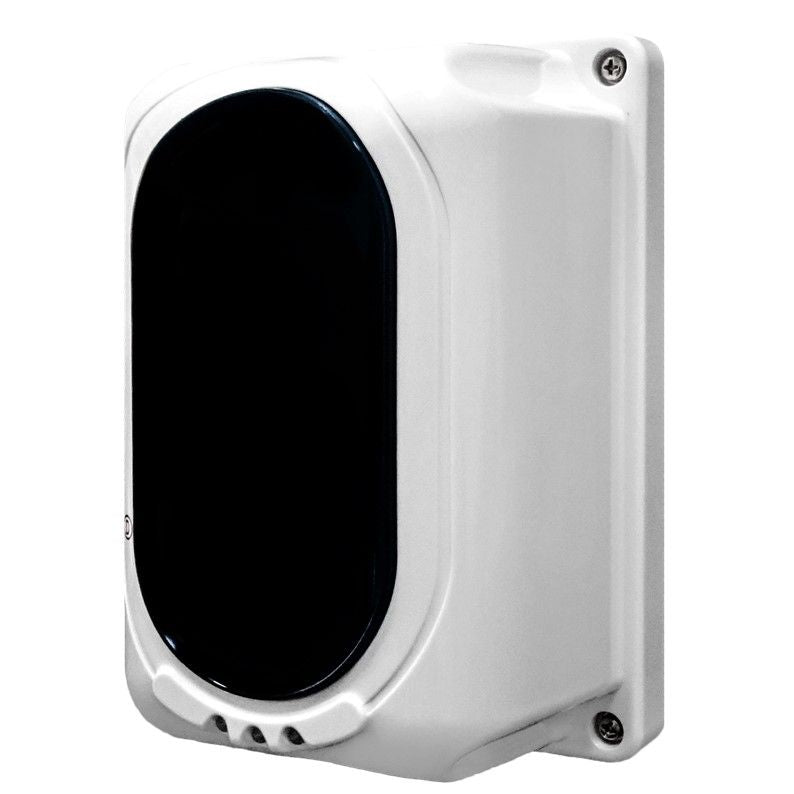

TX-7130 Conventional Reflective Beam Detector
Features
● Reflective Beam Detector is a reflective infrared beam smoke detector, which must be used together with reflectors. The number of reflector(s) to be used (1 to 4) depends on the distance of coverage from the detector
● Our feature "built-in laser beam" is to make alignment of mirror and detector easier and more convenient when mounting this device
Specifications
| MODEL NO. | TX-7130 |
| OPERATING VOLTAGE | 20V DC - 28V DC |
| CURRENT PARAMETERS | Standby ≤ 23 mA / Monitor ≤ 55 mA / Alarm ≤ 33 mA |
| RELAY CAPACITY (FIRE & FAULT) | Normal Open 30V DC/2.0A |
| LED INDICATOR | Fire: Red / Fault: Yellow / Monitor: Green |
| BEAM SENSOR SENSITITVITY | Level 1: 2.6dB (High Sensitivity) |
| Level 2: 3.4dB (Medium Sensitivity) | |
| Level 3: 4.8dB (Low Sensitivity) | |
| BEAM PATHWAY LENGTH | Span 1: 8 to 20 meters Short Path |
| Span 2: 20 to 40 meters Short Path | |
| Span 3: 40 to 70 meters Normal Path | |
| Span 4: 70 to 100 meters Long Path | |
| STANDBY SETUP | Length 40 to 70 meters, sesitivity, 3.4dB |
| OPERATING TEMPERATURE | -10°C ~ +55°C |
